I everyone, i just put myself in the world of customize page and template of Alfresco Share, i have succeded to call a backend action with a PageLink extensions but for some reason i can't retrieve a correct form.

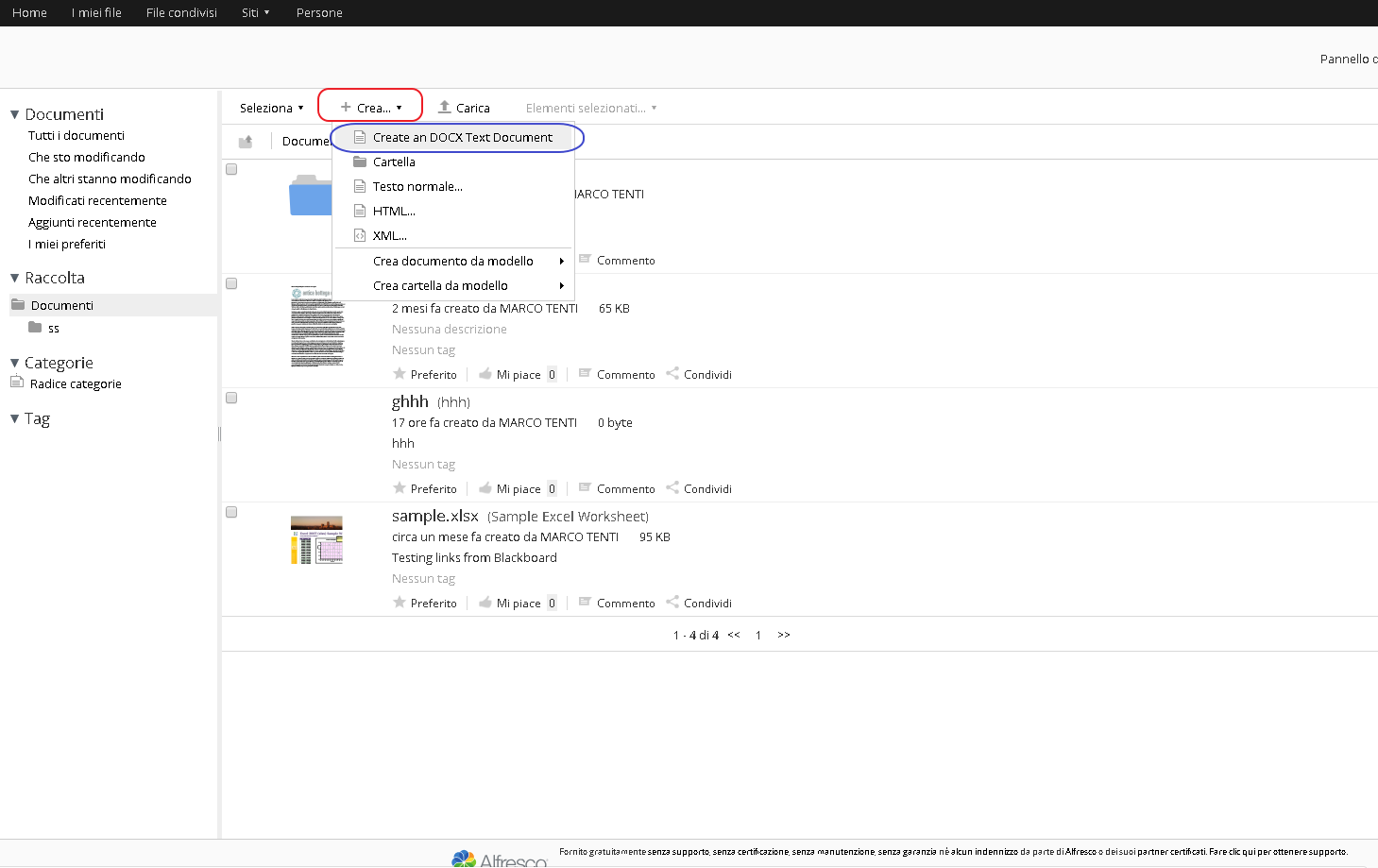

In the following case i'm tring to adding a menu item to the "Create..." menu in DocLib and call a action java backend.
I'm start by consulting this link: https://docs.alfresco.com/5.1/tasks/dev-extensions-share-tutorials-add-menuitem-create-menu.html
The only difference is i don't want to use a model-type but instead call a action when i submit the form.

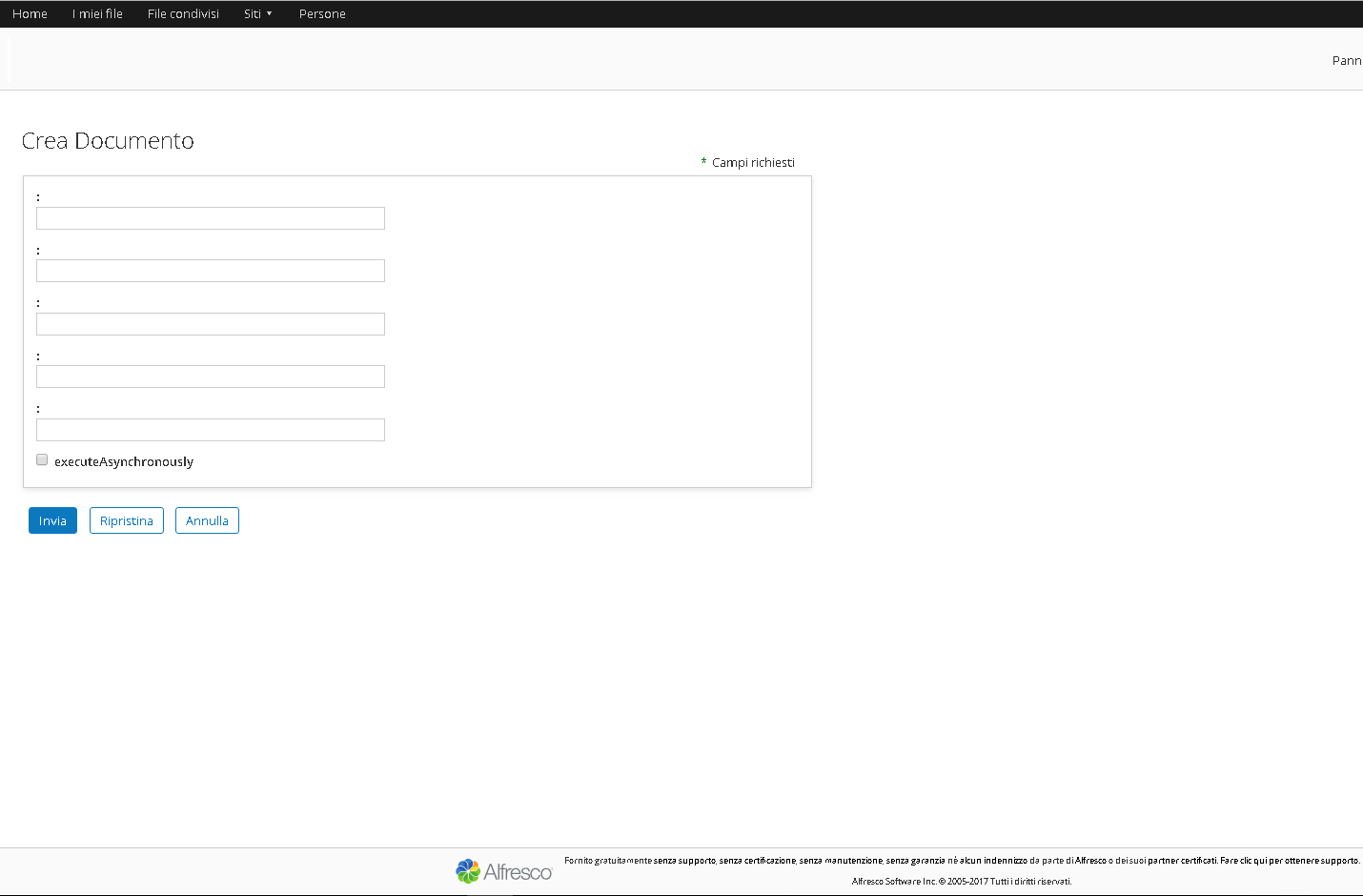

It's hard to explain with word so i put some code and some screenshoot.
I use Alfresco Community 5.2.f and SDK 3.0.0.
####################
## AMP REPO
####################
----------------------------------------------------------------------------------------------------------------------------------
/src/main/java/it/abd/alfresco/actions/MyCreateContentAction.java
------------------------------------------------------------------------------------------------------------------------------------------------------
public class MyCreateContentAction extends ActionExecuterAbstractBase {
private static org.slf4j.Logger logger = org.slf4j.LoggerFactory.getLogger(MyCreateContentAction.class);
private ServiceRegistry serviceRegistry;
public void setServiceRegistry(ServiceRegistry serviceRegistry)
{
this.serviceRegistry = serviceRegistry;
}
@SuppressWarnings("unused")
@Override
protected void executeImpl(Action action, NodeRef actionedUponNodeRef) {
try{
logger.debug("Eseguo l'azione :" + MyCreateContentAction.class.getName());
logger.debug(Arrays.toString(action.getParameterValues().entrySet().toArray()));
String name = (String)action.getParameterValue("cm:name");
String content = (String)action.getParameterValue("cm:content");
String title = (String)action.getParameterValue("cm:title");
String description= (String)action.getParameterValue("cm:description");
String mimetype = (String)action.getParameterValue("mimetype");
} catch (Throwable e) {
logger.error(e.getMessage(), e);
throw new RuntimeException(e);
}
}
/**
* Load the parameter definitions common across all signature types
*
*/
protected void addParameterDefinitions(List<ParameterDefinition> paramList)
{
paramList.add(new ParameterDefinitionImpl("cm:name", DataTypeDefinition.TEXT, false, getParamDisplayLabel("cm:name")));
paramList.add(new ParameterDefinitionImpl("cm:content", DataTypeDefinition.TEXT, false, getParamDisplayLabel("cm:content")));
paramList.add(new ParameterDefinitionImpl("cm:title", DataTypeDefinition.TEXT, false, getParamDisplayLabel("cm:title")));
paramList.add(new ParameterDefinitionImpl("cm:description", DataTypeDefinition.TEXT, false, getParamDisplayLabel("cm:description")));
paramList.add(new ParameterDefinitionImpl("mimetype", DataTypeDefinition.TEXT, false, getParamDisplayLabel("mimetype")));
}
}
-------------------------------------------------------------------------------------------------------------------------------
src/main/resources/alfresco/module/repo-amp/context/service-my-create-content-context.xml
----------------------------------------------------------------------------------------------------------------------------------
<?xml version='1.0' encoding='UTF-8'?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="service-my-create-content-action" class="it.abd.alfresco.actions.MyCreateContentAction" parent="action-executer">
<property name="serviceRegistry">
<ref bean="ServiceRegistry" />
</property>
</bean>
</beans>
----------------------------------------------------------------------------------------------------------------------------------
####################
## AMP SHARE
####################
----------------------------------------------------------------------------------------------------------------------------------
src/main/resources/alfresco/web-extension/site-data/extensions/service-my-create-content-docx-extension.xml
----------------------------------------------------------------------------------------------------------------------------------
<extension>
<modules>
<module>
<id>service-my-create-content-docx-extension</id>
<version>1.0</version>
<auto-deploy>true</auto-deploy>
<configurations>
<config evaluator="string-compare" condition="DocumentLibrary">
<create-content>
<content id="my-create-content-docx" label="create.docx.menu.item.label" icon="text" type="pagelink">
<param name="page">service-my-create-content-docx?itemKind=action&itemId=service-my-create-content-action&nodeRef={nodeRef}&destination={nodeRef}&itemId=service-my-create-content-action&mimeType=application/vnd.oasis.opendocument.text</param>
</content>
</create-content>
</config>
</configurations>
</module>
</modules>
</extension>
----------------------------------------------------------------------------------------------------------------------------------
src/main/resources/alfresco/web-extension/site-data/pages/service-my-create-content-docx.xml
----------------------------------------------------------------------------------------------------------------------------------
<?xml version='1.0' encoding='UTF-8'?>
<page>
<title>create.docx.page.title</title>
<title-id>create.docx.page.title-id</title-id>
<description>create.docx.page.description</description>
<description-id>create.docx.page.description-id</description-id>
<template-instance>service-my-create-content/service-my-create-content</template-instance>
<authentication>user</authentication>
</page>
----------------------------------------------------------------------------------------------------------------------------------
src/main/resources/alfresco/web-extension/site-data/template-instances/service-my-create-content/service-my-create-content.xml
----------------------------------------------------------------------------------------------------------------------------------
<template-instance>
<template-type>org/alfresco/extension/service-my-create-content/service-my-create-content</template-type>
<properties>
<pageFamily>myCreateContent</pageFamily>
<!-- <container>documentLibrary</container> -->
<columns>2</columns>
<rows>3</rows>
</properties>
<components>
<component>
<region-id>title</region-id>
<sub-components>
<sub-component id="default">
<evaluations>
<evaluation id="site">
<evaluators>
<evaluator type="site.component.evaluator"/>
</evaluators>
<url>/components/title/collaboration-title</url>
</evaluation>
<evaluation id="repo">
<url>/components/title/simple-title</url>
<properties>
<title>title.repository</title>
<subtitle>title.browser</subtitle>
</properties>
</evaluation>
</evaluations>
</sub-component>
</sub-components>
</component>
<component>
<region-id>navigation</region-id>
<sub-components>
<sub-component id="default">
<evaluations>
<evaluation id="site">
<evaluators>
<evaluator type="site.component.evaluator"/>
</evaluators>
<url>/components/navigation/collaboration-navigation</url>
</evaluation>
</evaluations>
</sub-component>
</sub-components>
</component>
<!-- Create Content Form Manager -->
<component>
<region-id>service-my-create-content-form-mgr</region-id>
<url>/components/service-my-create-content/service-my-create-content-form-mgr</url>
</component>
<!-- Create Content Form -->
<component>
<region-id>service-my-create-content-form</region-id>
<url>/components/form?itemKind=action&itemId=service-my-create-content-action&nodeRef={nodeRef}&mimeType={mimeType}&destination={destination}</url>
<properties>
<itemKind>action</itemKind>
<itemId>service-my-create-content-action</itemId>
<!--<itemKind>type</itemKind>-->
<!-- <itemId>{itemId}</itemId> -->
<mode>create</mode>
<submitType>json</submitType>
<formUI>true</formUI>
<showCaption>true</showCaption>
<showResetButton>true</showResetButton>
<showCancelButton>true</showCancelButton>
<editInline>true</editInline>
<destination>{nodeRef}</destination>
<nodeRef>{nodeRef}</nodeRef>
<redirect>/share/page/document-details?nodeRef={nodeRef}</redirect>
</properties>
</component>
</components>
</template-instance>
----------------------------------------------------------------------------------------------------------------------------------
/src/main/resources/alfresco/web-extension/templates/org/alfresco/extension/service-my-create-content/service-my-create-content.ftl
----------------------------------------------------------------------------------------------------------------------------------
<#include "/org/alfresco/include/alfresco-template.ftl" />
<@templateHeader />
<@templateBody>
<@markup id="alf-hd">
<div id="alf-hd">
<@region scope="global" id="share-header" chromeless="true"/>
</div>
</@>
<@markup id="bd">
<div id="bd">
<div class="share-form">
<@region id="service-my-create-content-form-mgr" scope="template" />
<@region id="service-my-create-content-form" scope="template" />
</div>
</div>
</@>
</@>
<@templateFooter>
<@markup id="alf-ft">
<div id="alf-ft">
<@region id="footer" scope="global" />
</div>
</@>
</@>
----------------------------------------------------------------------------------------------------------------------------------
/src/main/resources/alfresco/web-extension/site-webscripts/it/abd/service-my-create-content/org/alfresco/components/form-mgr/service-my-create-content-form-mgr.get.desc.xml
----------------------------------------------------------------------------------------------------------------------------------
<webscript>
<shortname>my-create-content-mgr</shortname>
<description>My Create Content Manager Component</description>
<url>/components/service-my-create-content/service-my-create-content-form-mgr</url>
</webscript>
----------------------------------------------------------------------------------------------------------------------------------
/src/main/resources/alfresco/web-extension/site-webscripts/it/abd/service-my-create-content/org/alfresco/components/form-mgr/service-my-create-content-form-mgr.get.html.ftl
----------------------------------------------------------------------------------------------------------------------------------
<#include "/org/alfresco/include/alfresco-macros.lib.ftl" />
<script type="text/javascript">//<![CDATA[
/**
* MyCreateContentMgr template.
*
* @namespace Alfresco
* @class Alfresco.MyCreateContentMgr
*/
(function()
{
/**
* YUI Library aliases
*/
var Dom = YAHOO.util.Dom;
/**
* Alfresco Slingshot aliases
*/
var $siteURL = Alfresco.util.siteURL;
/**
* MyCreateContentMgr constructor.
*
* @param {String} htmlId The HTML id of the parent element
* @return {Alfresco.MyCreateContentMgr} The new MyCreateContentMgr instance
* @constructor
*/
Alfresco.MyCreateContentMgr = function MyCreateContentMgr_constructor(htmlId)
{
Alfresco.MyCreateContentMgr.superclass.constructor.call(this, "Alfresco.MyCreateContentMgr", htmlId);
/* Decoupled event listeners */
YAHOO.Bubbling.on("formContentReady", this.onFormContentReady, this);
//YAHOO.Bubbling.on("beforeFormRuntimeInit", this.onBeforeFormRuntimeInit, this);
return this;
};
YAHOO.extend(Alfresco.MyCreateContentMgr, Alfresco.component.Base,
{
/**
* Object container for initialization options
*
* @property options
* @type object
*/
options:
{
/**
* Is the created type expected to be a container?
* The manager needs to know whether the following page is document-details or folder-details.
*
* @property isContainer
* @type boolean
* @default false
*/
isContainer: false,
/**
* Current siteId.
*
* @property siteId
* @type string
*/
siteId: null
},
/**
* Event handler called when the "formContentReady" event is received
*/
onFormContentReady: function MyCreateContentMgr_onFormContentReady(layer, args)
{
// change the default 'Submit' label to be 'Save'
var submitButton = args[1].buttons.submit;
submitButton.set("label", this.msg("my-create-content-mgr-button.create"));
// add a handler to the cancel button
var cancelButton = args[1].buttons.cancel;
cancelButton.addListener("click", this.onCancelButtonClick, null, this);
},
/**
* Event handler called when the "beforeFormRuntimeInit" event is received
*/
/*
onBeforeFormRuntimeInit: function MyCreateContentMgr_onBeforeFormRuntimeInit(layer, args)
{
args[1].runtime.setAJAXSubmit(true,
{
successCallback:
{
fn: this.onCreateContentSuccess,
scope: this
},
failureCallback:
{
fn: this.onCreateContentFailure,
scope: this
}
});
},
*/
/**
* Handler called when the metadata was updated successfully
*
* @method onCreateContentSuccess
* @param response The response from the submission
*/
/*
onCreateContentSuccess: function MyCreateContentMgr_onCreateContentSuccess(response)
{
var nodeRef = null;
if (response.json && response.json.persistedObject)
{
// Grab the new nodeRef and pass it on to _navigateForward() to optionally use
nodeRef = new Alfresco.util.NodeRef(response.json.persistedObject);
// Activity post - documents only
if (!this.options.isContainer)
{
Alfresco.Share.postActivity(this.options.siteId, "org.alfresco.documentlibrary.file-created", "{cm:name}", "document-details?nodeRef=" + nodeRef.toString(),
{
appTool: "documentlibrary",
nodeRef: nodeRef.toString()
}, this.bind(function() { this._navigateForward(nodeRef); }));
}
}
},
*/
/**
* Handler called when the metadata update operation failed
*
* @method onCreateContentFailure
* @param response The response from the submission
*/
/*
onCreateContentFailure: function MyCreateContentMgr_onCreateContentFailure(response)
{
var errorMsg = this.msg("my-create-content-mgr.create.failed");
if (response.json && response.json.message)
{
errorMsg = errorMsg + ": " + response.json.message;
}
Alfresco.util.PopupManager.displayPrompt(
{
title: this.msg("my-create-content-mgr.message.failure"),
text: errorMsg
});
},
*/
/**
* Called when user clicks on the cancel button.
*
* @method onCancelButtonClick
* @param type
* @param args
*/
onCancelButtonClick: function MyCreateContentMgr_onCancel(type, args)
{
this._navigateForward();
},
/**
* Displays the corresponding details page for the current node
*
* @method _navigateForward
* @private
* @param nodeRef {Alfresco.util.NodeRef} Optional: NodeRef of just-created content item
*/
_navigateForward: function MyCreateContentMgr__navigateForward(nodeRef)
{
// Have we been given a nodeRef from the Forms Service?
if (YAHOO.lang.isObject(nodeRef))
{
window.location.href = $siteURL((this.options.isContainer ? "folder" : "document") + "-details?nodeRef=" + nodeRef.toString());
}
else if (document.referrer)
{
// Did we come from the document library? If so, then direct the user back there
if (document.referrer.match(/documentlibrary([?]|$)/) || document.referrer.match(/repository([?]|$)/))
{
// go back to the referrer page
history.go(-1);
}
else
{
document.location.href = document.referrer;
}
}
else if (this.options.siteId && this.options.siteId !== "")
{
// In a Site, so go back to the document library root
window.location.href = $siteURL("documentlibrary");
}
else
{
window.location.href = Alfresco.constants.URL_CONTEXT;
}
}
});
})();
//]]></script>
<@markup id="widgets">
<@createWidgets />
</@>
<@markup id="html">
<@uniqueIdDiv>
<div class="form-manager">
<h1>Crea Documento</h1>
</div>
</@>
</@>
----------------------------------------------------------------------------------------------------------------------------------
/src/main/resources/alfresco/web-extension/site-webscripts/it/abd/service-my-create-content/org/alfresco/components/form-mgr/service-my-create-content-form-mgr.get.js
----------------------------------------------------------------------------------------------------------------------------------
<import resource="classpath:/alfresco/templates/org/alfresco/import/alfresco-util.js">
function main() {
var siteName = (page.url.templateArgs.site != null) ? page.url.templateArgs.site : "";
var forwardUrl = (page.url.args.forwardUrl != null) ? page.url.args.forwardUrl : "";
// Need to know what type of node this is - document or folder
// AlfrescoUtil.param("nodeRef");
// Widget instantiation metadata...
var widget = {
id : "MyCreateContentMgr",
name : "Alfresco.MyCreateContentMgr",
options : {
//siteId : model.siteName,
siteId : (page.url.templateArgs.site != null) ? page.url.templateArgs.site : "",
forwardUrl : forwardUrl,
isContainer: "true" == ((page.url.args.isContainer != null) ? page.url.args.isContainer : "false")
//orangeDsCertificateChoiceMessage : msg.get("certificateChoice.label.needChoice")
}
};
model.widgets = [widget];
}
main();
----------------------------------------------------------------------------------------------------------------------------------
/src/main/resources/alfresco/web-extension/site-webscripts/it/abd/service-my-create-content/org/alfresco/components/form-mgr/service-my-create-content-form-mgr.get.properties
----------------------------------------------------------------------------------------------------------------------------------
my-create-content-mgr.heading=Crea Contenuto
my-create-content-mgr.create.failed=Fallito il creamento del contenuto
my-create-content-mgr.message.failure=Fallito il creamento del contenuto
my-create-content-mgr-button.create=Crea
----------------------------------------------------------------------------------------------------------------------------------
The code is done here the screenshot of what i have done on share:
How you can see whe i click on "Create" of share (cirlce red), i have a new option "Create an DOCX text Document"(circle blue).
After i click on that new voice i'm corrected reditrect to the form:
but the form is wrong (how you can see on the screenshot), i cannot set the labels for the inputs, and i don't find any way to manage that with the "/components/form/" webscript.
If i click on the Submit button i'm reach the java action backend like i want, it's jus the form i can't customize or repair in any way.
I'm desperate for find a solution to this.
Ty in advance for any help.
