Radio buttons values are not displayed

amruta_w

Hello All,

I have created the process with radio buttons in the first task of the form, in the next task of the form trying to display the radio button using display value but it doesn't show anything here you can see the screen shot.

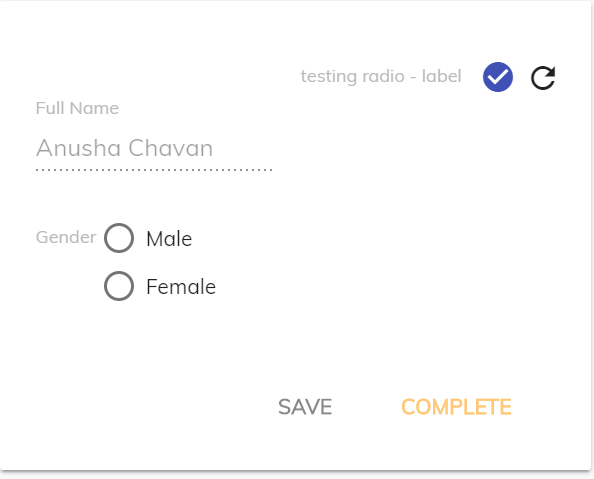

Task 1 -> form 1

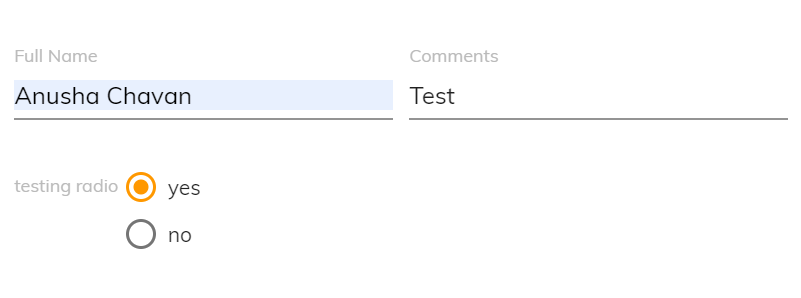

Task 2 -> form 2

Please anyone let me know how to resolve this.

Denys Vuika‌ Ciju Joseph‌ Eugenio Romano‌

Thanks & Regards

Amruta Wandakar

Find more posts tagged with

Application Development Framework

Accepted answers

eugenio_romano

ADF 3.6.0 will have this issue fixed

All comments

eugenio_romano

Hi, which version of ADF are you using? cna you rpovide yoru Form?

amruta_w

I'm using ADF 2.0.0, I have checked even in latest version of ADF demo-shell faced same problem.

mdtabrezmca

Hi Eugenio,

I was also facing the same issue i found the root cause of the issue. I tried to reproduce the same issue in ADF 3 demoshell and i was able to reproduce the issue.

Root cause is when the following api tries to load the task form

http://localhost:8080/activiti-app/api/enterprise/task-forms/

the json returns options field null.

Since we are iterating the options value to construct radio buttons in the radio-buttons.widget.html

https://github.com/Alfresco/alfresco-ng2-components/blob/development/lib/core/form/components/widgets/radio-buttons/radio-buttons.widget.html

hence unable to render the radio buttons while using display value.

Denys Vuika‌ Eugenio Romano‌ Bassam Al-Sarori‌ Raphael Allegre‌

Do you think this is a bug in Alfresco APS API or is it a desired functionality.

eugenio_romano

It looks like a bug yes thanks for investigating it.Not sure is an API wanted behavior but for sure can be fixed in te Front end

mbentaleb

Hi,

This is a front-end bug. An issue has already been raised and we'll try to fix it as soon as possible.

Thank you for your contribution.

eugenio_romano

ADF 3.6.0 will have this issue fixed
