Receive Task inside a Sub Process

tahadakal

I have a BPM which has a receive task inside a sub process.

When I try to signal the process instance execution after creation i get the following error :

java.lang.NullPointerException
    at org.activiti.engine.impl.persistence.entity.ExecutionEntity.signal(ExecutionEntity.java:406)
    at org.activiti.engine.impl.cmd.SignalCmd.execute(SignalCmd.java:43)
    at org.activiti.engine.impl.cmd.NeedsActiveExecutionCmd.execute(NeedsActiveExecutionCmd.java:55)
    at org.activiti.engine.impl.interceptor.CommandInvoker.execute(CommandInvoker.java:24)
    at org.activiti.engine.impl.interceptor.CommandContextInterceptor.execute(CommandContextInterceptor.java:57)
    at org.activiti.spring.SpringTransactionInterceptor$1.doInTransaction(SpringTransactionInterceptor.java:47)
    at org.springframework.transaction.support.TransactionTemplate.execute(TransactionTemplate.java:131)
    at org.activiti.spring.SpringTransactionInterceptor.execute(SpringTransactionInterceptor.java:45)
    at org.activiti.engine.impl.interceptor.LogInterceptor.execute(LogInterceptor.java:37)
    at org.activiti.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:40)
    at org.activiti.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:35)
    at org.activiti.engine.impl.RuntimeServiceImpl.signal(RuntimeServiceImpl.java:231)‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

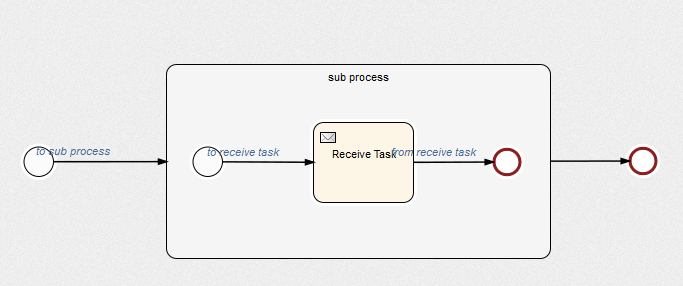

I have attached the BPMN : PNG and the XML(BPMN20)

Here is the process XML :

<process id="Basic_receive_task" name="BasicReceiveTask" isExecutable="true">
&nbsp;&nbsp;&nbsp; <subProcess id="sub_process" name="sub process">
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <receiveTask id="receive_task" name="Receive Task"></receiveTask>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <startEvent id="start_sub_process" name="start sub process"></startEvent>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <endEvent id="end_sub_process" name="end sub process"></endEvent>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <sequenceFlow id="to_receive_task" name="to receive task" sourceRef="start_sub_process" targetRef="receive_task"></sequenceFlow>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <sequenceFlow id="from_receive_task" name="from receive task" sourceRef="receive_task" targetRef="end_sub_process"></sequenceFlow>
&nbsp;&nbsp;&nbsp; </subProcess>
&nbsp;&nbsp;&nbsp; <startEvent id="start_process" name="start process"></startEvent>
&nbsp;&nbsp;&nbsp; <endEvent id="end_process" name="end process"></endEvent>
&nbsp;&nbsp;&nbsp; <sequenceFlow id="sid-DDE7998A-D99D-4A4E-BFAA-3BC6CF33E6BB" sourceRef="sub_process" targetRef="end_process"></sequenceFlow>
&nbsp;&nbsp;&nbsp; <sequenceFlow id="to_sub_process" name="to sub process" sourceRef="start_process" targetRef="sub_process"></sequenceFlow>
</process>‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

Am I missing something?

Please advice.

Thanks.

EDIT 1 (Junit):

@Test
public void test() {
     //initialize activiti engine
     RuntimeService runtimeService = activitiRule.getRuntimeService();

     //create WF
     ProcessInstance processInstance = runtimeService.startProcessInstanceByKey("Basic_receive_task", "TEST");

     runtimeService.signal(processInstance.getId());

}‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍


Basic_receive_task.bpmn20.xml.zip

gdharley

Ok, so the devil is always in the detail.

You are signalling the process instance ID which in this case is not likely to be the same as the execution ID, hence the NPE.

You will need to retrieve the execution ID by querying the engine for the receive task, then use that ID rather than the process instance id.

Cheers,

Greg

‌
