How to display custom Stencil forms in Process Tasks within ADF application?

paiyyavj13

hi,

I have used the demo app that comes with ADF and have made the demo app talk my Alfresco Processes Services application.

I am able to start my application, but one of my task forms has a custom Stencil component which needs to be displayed.

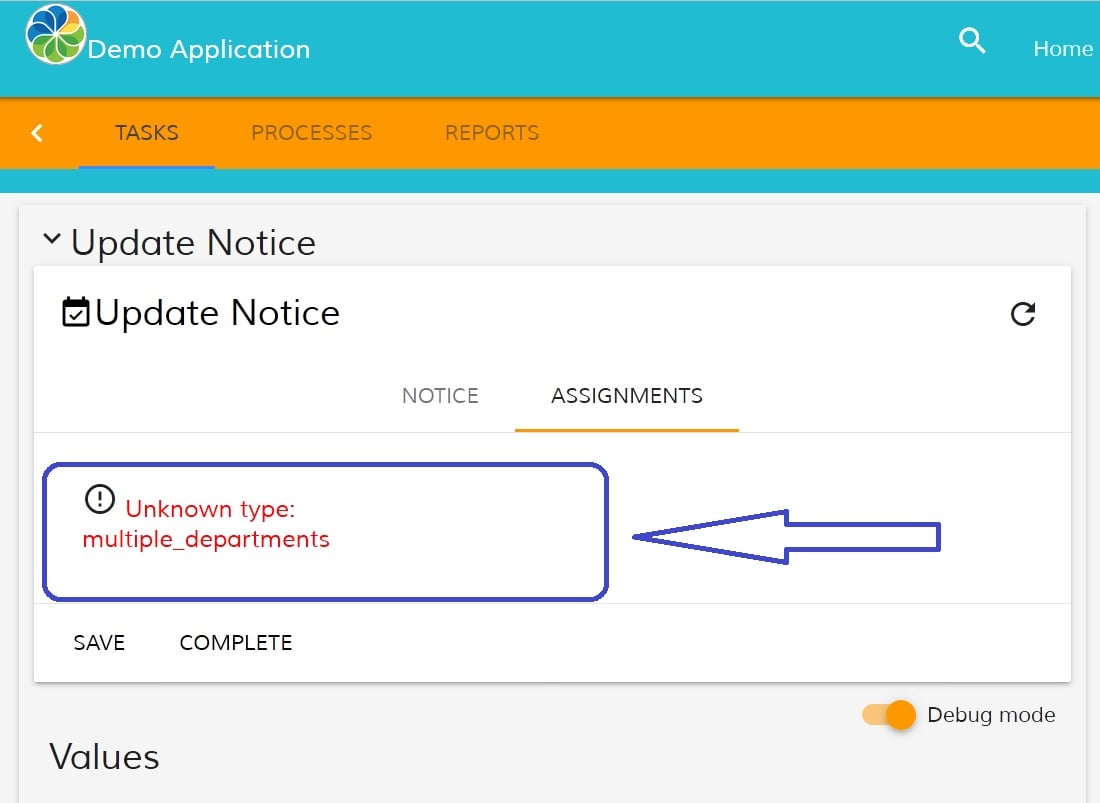

I get the below error, where "multiple_departments" is the field name in my custom form,

Please provide you views and suggestions... Thank you...

Regards.

Find more posts tagged with

Application Development Framework

Comments

eugenio_romano

Hi @Paiyyavj13 _

did you get a look here?

alfresco-ng2-components/stencils.md at master · Alfresco/alfresco-ng2-components · GitHub

paiyyavj13

Thank you Eugenio... Looks like this should work... Let me try it out....

paiyyavj13

Hi Eugenio,

I tried the steps:

I added the below on my demo-app/index.html file:

<!-- Stencils integration --><script src="node_modules/ng2-activiti-form/stencils/runtime.ng1.js"></script> <script src="node_modules/ng2-activiti-form/stencils/runtime.adf.js"></script> <script src="http://localhost:8080/activiti-app/app/rest/script-files/controllers"></script>

I do not believe I need to restart my app- but just to be safe I restarted it, but this did not solve the issue. My custom Stencil is not visible yet, gives the same result as in the screenshot.

Do I need to write any TypeScript code? to make my custom js Controller work? If so, could you let me know where I should write this code? which file?

Please advise... Thank you...

Regards.

dharmraj

this one is replacing custom stencil template .But i want same stencil in UI

dvuika

You don't need declaring those extra javascript files. It is not possible to render Angular 1 stencils with ADF, you will have to create Angular components and register them as in the following documentation: https://github.com/Alfresco/alfresco-ng2-components/blob/master/ng2-components/ng2-activiti-form/docs/extensibility.md

dharmraj

In this example its replacing stencil template with new template whatever i have defined in custom-editor.component.ts .But I don't want to replace template . what i have to do ?

dhrn

eugenio romano‌ Denys Vuika‌

i am getting this error in adf - 2.0

ContainerWidgetComponent.html:17 ERROR ReferenceError: adf is not defined
at FormFieldComponent.hasController (adf-core.umd.js:17579)
at FormFieldComponent.ngOnInit (adf-core.umd.js:17529)
at checkAndUpdateDirectiveInline (core.js:12094)
at checkAndUpdateNodeInline (core.js:13597)
at checkAndUpdateNode (core.js:13540)
at debugCheckAndUpdateNode (core.js:14412)
at debugCheckDirectivesFn (core.js:14353)
at Object.eval [as updateDirectives] (ContainerWidgetComponent.html:17)
at Object.debugUpdateDirectives [as updateDirectives] (core.js:14338)
at checkAndUpdateView (core.js:13507)

i am confused now with these tutorials
https://github.com/Alfresco/alfresco-ng2-components/blob/master/docs/stencils.md
https://github.com/Alfresco/alfresco-ng2-components/blob/master/docs/extensibility.md
which documentation i have to follow?. please give me the correct documentation for this.

<script src="node_modules/ng2-activiti-form/stencils/runtime.ng1.js"></script>
<script src="node_modules/ng2-activiti-form/stencils/runtime.adf.js"></script>

these lines are deprecated now but still it is there in documentation.

if (adf) {     adf.registerComponent('ng2_component_01', SampleClass1); }
 where i have to add?

dvuika

You need only alfresco-ng2-components/extensibility.md at master · Alfresco/alfresco-ng2-components · GitHub The stencil you are trying to map "must not" have any controllers attached (neither AngularJS nor Angular).

dhrn

thanks Denys Vuika‌ ‌ i have removed angular 1 controller in APS, so it is working in ADF. But now In APS it is not working. suggest a solution for this problem.
version:
APS : 1.6.4

dvuika

We will fix the issue with APS controllers, so that you can still use them in both UIs

santolovic

please advise has this issue been solved and how?
