Process Instance did't complete

As we transition to the new Hyland Community, some post links may be temporarily disrupted as we finalize redirects. We apologize for the inconvenience and are working to resolve this as quickly as possible. Details.

darkwind

version:

activiti-6.0.0 from Download Now | Activiti.org

rest-api



question:

I finished all task , but this Process Instance did't  change it status to complete

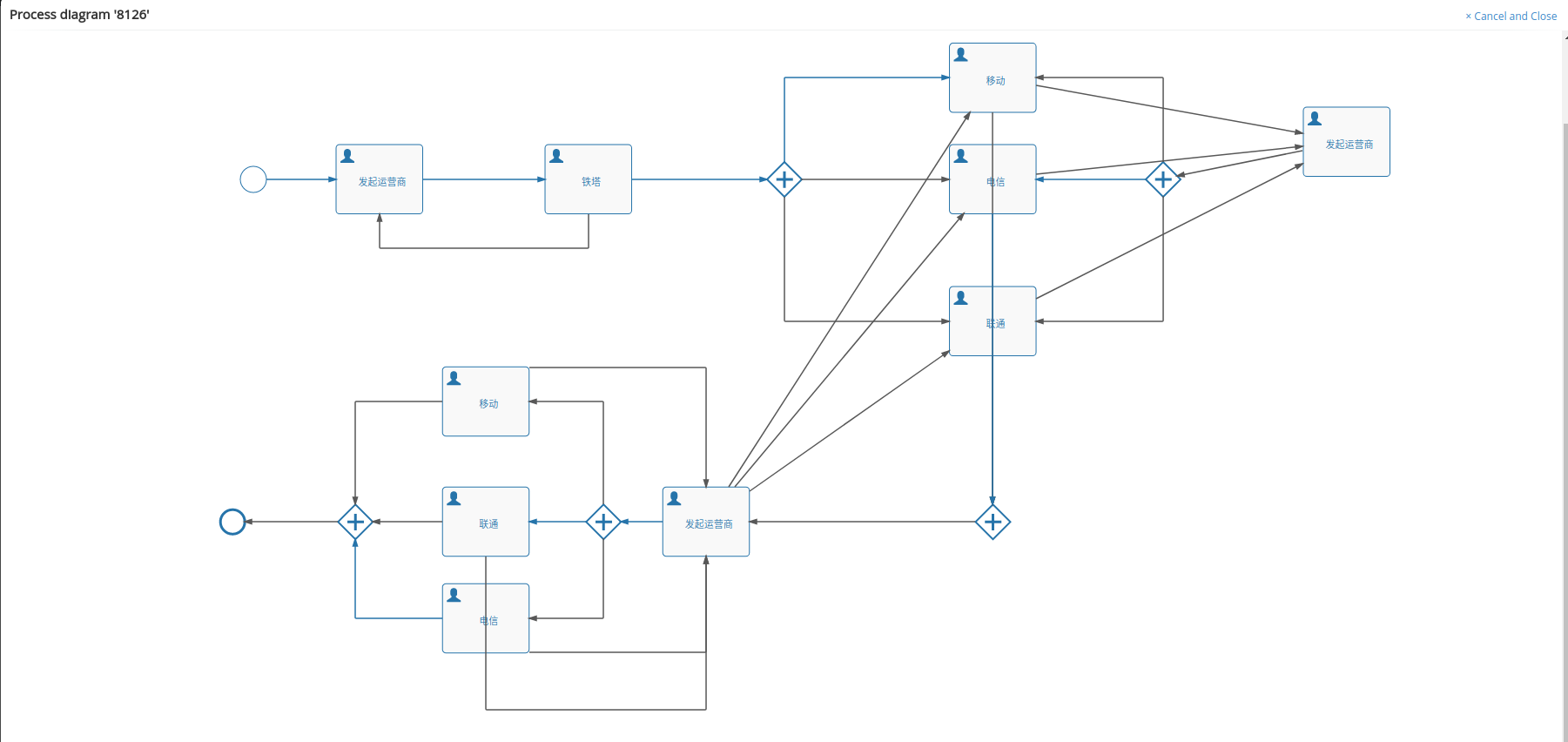

flow img:

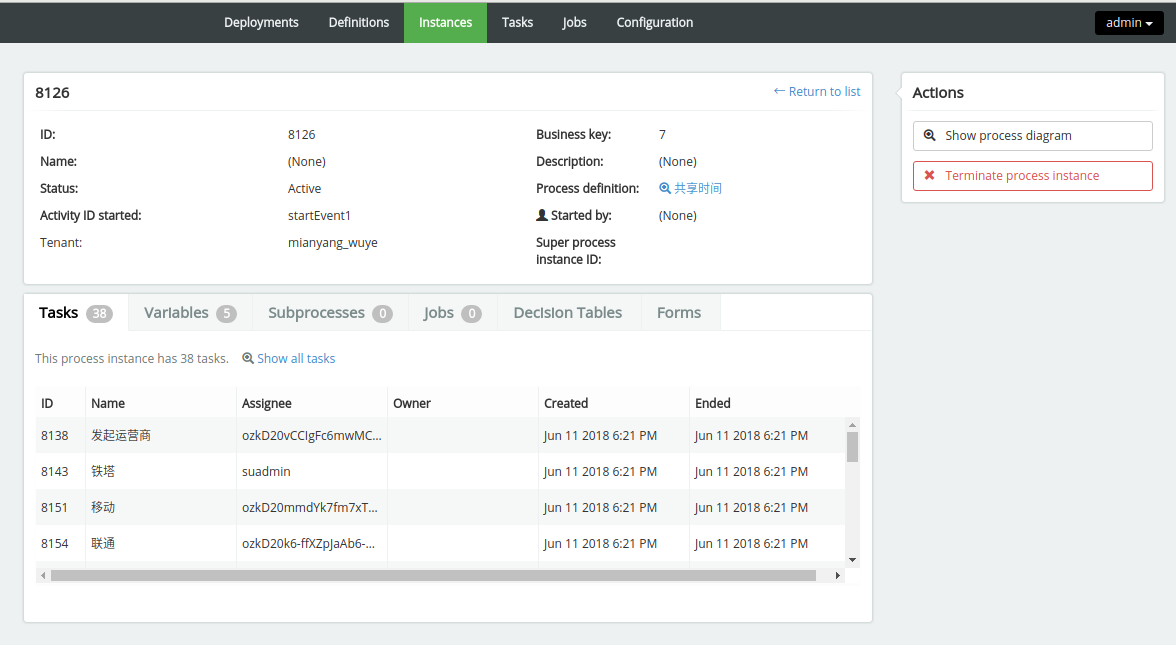

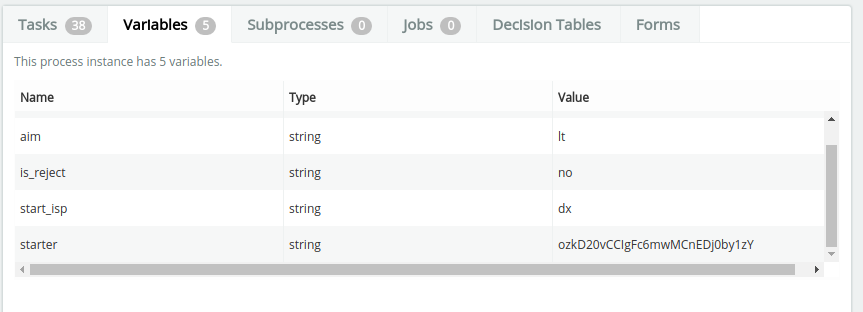

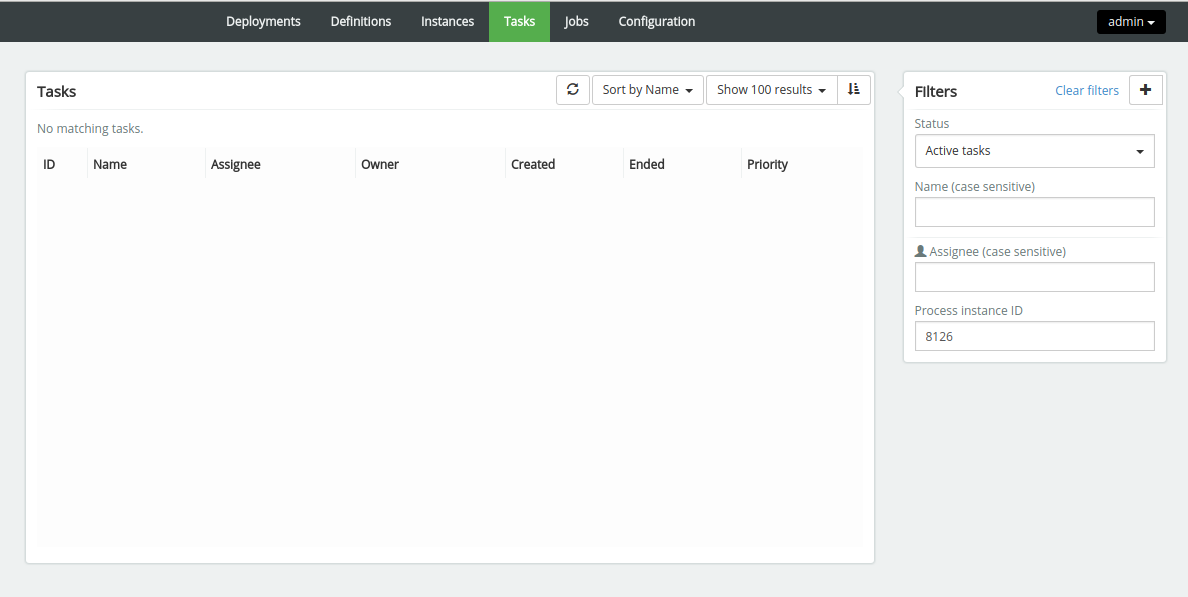

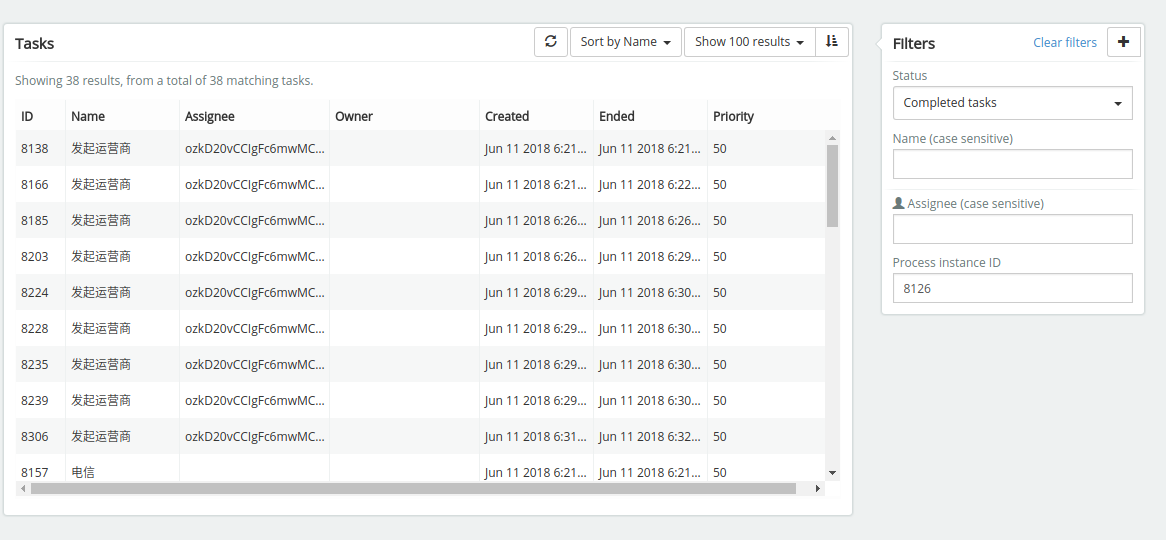

admin show:

replay:

1 push this process, claim and complete task but keep last task

2 compete task with reject , push process to the right node.

3  Continue pushing and complete all tasks

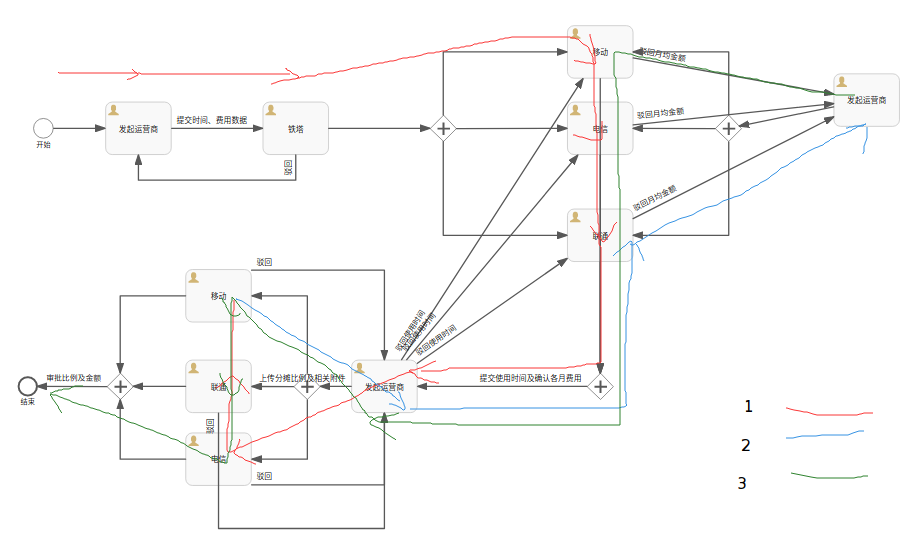

my terrible picture：

Note:

The bpmn file include many important info and this a very complex flow. Even I used "skipExpression".

I am sure i finished all tasks, but process did't change it status.

If I'm not through step 2( the blue line), just finished last task, and the process works well.

history_proportion.bpmn.zip

salaboy

Hi there,

it might be the last gateway that it is holding the execution?

Notice that you have a parallel gateway, so you need to finish all three tasks in order to move the process to a completed state.
